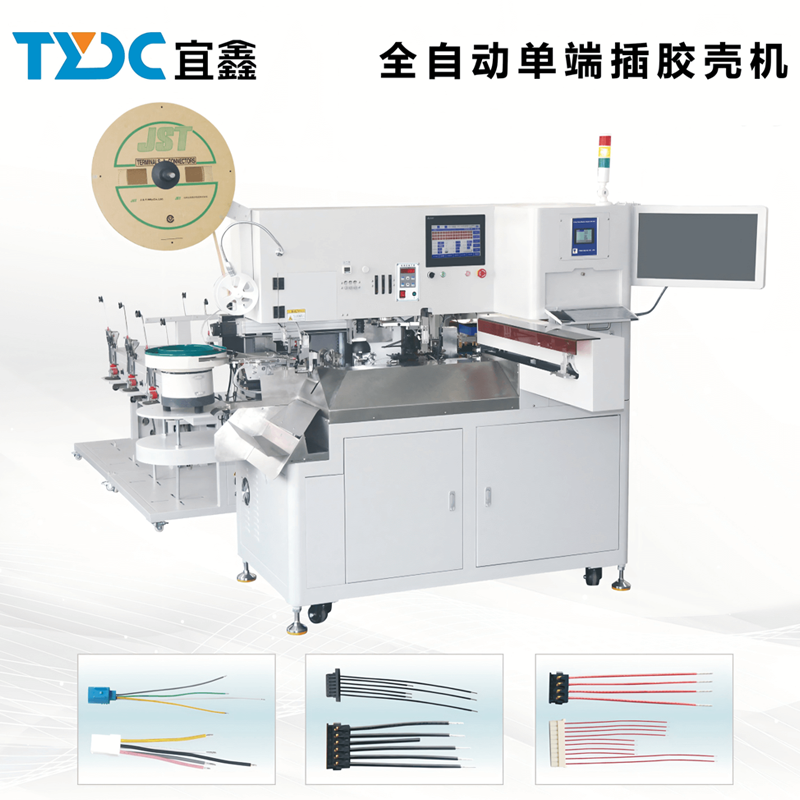

이중선 단일 말단 삽입 기계
최신 가격을 얻으십시오| 지불 유형: | L/C,T/T |
| 인 코텀: | FOB,CIF,EXW |
| 최소 주문량: | 1 Set/Sets |
| 수송: | Ocean,Land,Air |
| 포트: | Shenzhen Port,Guangzhou Port,Hongkong Port |
Model:
Option:
- Power Supply: AC 200V
- High power: 4.8 KW
- Compressed air: 0.4–0.6 MPa
- Machine weight: Approximately 750 KG
- Dimensions (L×W×H): 1950 × 1600 × 1800 mm
- Function: A-Side: Cutting, stripping, and tinning B-Side: Cutting, stripping, crimping, CCD inspection, shell insertion
- Wire Processing Range: AWG16–AWG30 Customizable
- Wire Cutting Length: 40–900 mm Customizable
- Cutting Accuracy: 0.5 mm + 0.2% of cutting length
- Stripping Leangth: A-side 0.1–10 mm, B-side 0.1–6 mm
- Twisted Wire Length: 3–10 mm
- Tin Dipping Length: Maximum 10 mm
- Compression Ability: 2 T Customizable
- Maximum PIN Insertion: 20 pins per row, up to 3 rows
- Maximum Color Count: 8 Colors Customizable
- Shell Size: Maximum 40 × 25 × 20 mm, Minimum 5 × 6 × 3 mm, spacing 1.0–4.2 mm
- Maximum Operating Speed: 1.5 seconds per unit
- Detection Device: CCD for terminal appearance, presence/absence of terminals, pull-out detection after shell insertion, presence/absence of adhesive seat, and production defect rate monitoring
